Engine Bearings: Essential Components for Smooth and Reliable Engine Operation

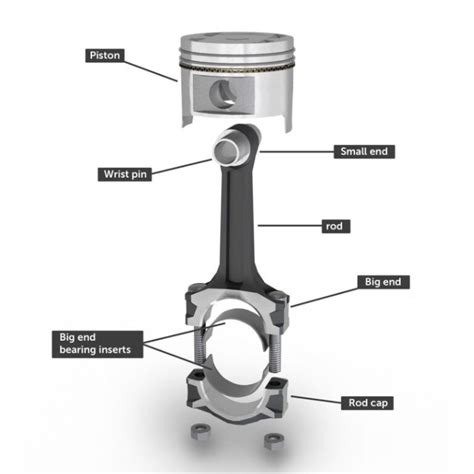

Engine bearings are critical components that play a vital role in maintaining the smooth and reliable operation of an engine. They serve as supports for the crankshaft and connecting rods, allowing them to rotate efficiently while minimizing friction.

Importance of Engine Bearings

• Bearing Load Distribution: Bearings distribute the load of rotating components over a larger surface area, reducing the pressure on any single point. This helps prevent wear and premature failure.
• Friction Reduction: Bearings provide a low-friction surface for rotating components to move against, reducing energy losses and heat generation.
• Clearance Control: Bearings maintain a precise clearance between rotating components, ensuring proper lubrication and preventing seizure.
• Noise and Vibration Damping: Engine bearings help absorb and dampen noise and vibrations caused by rotating components, contributing to a quieter engine operation.

Types of Engine Bearings

There are various types of engine bearings, each designed for specific applications and load conditions:

• Plain Bearings: Consist of a simple cylindrical surface made of a bearing material, such as copper-lead or aluminum alloy.
• Rolling Element Bearings: Use rolling elements, such as balls or rollers, to reduce friction between rotating components.
• Hydrodynamic Bearings: Utilize a thin layer of oil to create a fluid film that separates rotating surfaces, eliminating metal-to-metal contact.
• Hydrostatic Bearings: Similar to hydrodynamic bearings but use an external pump to supply the oil film.
• Hybrid Bearings: Combine elements of different bearing types to optimize performance and durability.

Materials for Engine Bearings

Engine bearings are typically made of materials that possess the following properties:

• High Strength: To withstand the significant loads imposed on them.
• Low Friction: To minimize energy losses and wear.
• High Wear Resistance: To ensure long service life.
• Corrosion Resistance: To withstand the harsh environment present in an engine.

Commonly used bearing materials include copper-lead alloys, aluminum alloys, babbitt metals, and powder metal composites.

Failure Modes of Engine Bearings

Engine bearings can fail due to various reasons, including:

• Wear: Gradual loss of material due to friction and load.
• Fatigue: Repeated loading and unloading can lead to subsurface cracks and eventual failure.
• Contamination: Foreign particles in the oil can cause premature wear or damage.
• Overheating: Excessive heat can soften or melt the bearing material, leading to failure.
• Improper Lubrication: Insufficient lubrication can cause metal-to-metal contact and rapid bearing failure.

Diagnosis and Prevention of Engine Bearing Failures

Regular monitoring and maintenance can help identify and prevent engine bearing failures:

• Oil Analysis: Periodic oil analysis can detect abnormal levels of metal particles, indicating possible bearing wear.
• Vibration Analysis: Excessive vibrations can be an early indication of bearing problems.
• Visual Inspection: Removing engine components for visual inspection can reveal signs of bearing failure, such as scoring or discoloration.
• Proper Maintenance: Regular oil changes, using the correct oil type, and following manufacturer-recommended maintenance schedules can help prevent premature bearing failure.

Case Studies and Lessons Learned

Case Study 1: Excessive Wear

A diesel engine experienced excessive wear on its main bearings. Analysis revealed that the oil filter was not replaced regularly, allowing dirt and contaminants to enter the oil and damage the bearings.

Lesson Learned: Regular maintenance, including timely oil changes and filter replacements, is crucial for preventing bearing failures caused by contamination.

Case Study 2: Fatigue Failure

A high-performance race engine suffered a fatigue failure of a connecting rod bearing. Examination showed that the bearing had been subjected to repeated high loads, which eventually led to subsurface cracking and catastrophic failure.

Lesson Learned: Using appropriate bearings designed for the intended loads and operating conditions is essential to prevent fatigue failures.

Case Study 3: Overheating Failure

An industrial generator experienced an overheating failure of its crankshaft bearings. Investigation revealed that the cooling system had malfunctioned, causing the engine to overheat and damage the bearings.

Lesson Learned: Proper engine cooling is essential to prevent bearing failures caused by excessive heat.

Step-by-Step Approach to Engine Bearing Replacement

Replacing engine bearings requires specialized skills and tools. Here is a step-by-step approach:

1. Prepare the Engine: Disconnect the battery and drain the oil.
2. Remove Engine Components: Remove the oil pan, crankshaft, and connecting rods to access the bearings.
3. Inspect the Bearings: Examine the bearings for signs of wear, damage, or contamination.
4. Clean the Bearing Surfaces: Use a solvent and lint-free cloth to clean the bearing surfaces and remove any debris.
5. Install New Bearings: Press or hammer new bearings into place using the appropriate tools.
6. Reassemble the Engine: Reinstall the connecting rods, crankshaft, oil pan, and other components.
7. Add Oil and Start the Engine: Add new oil, reconnect the battery, and start the engine.
8. Monitor the Engine: Listen for any unusual noises or vibrations and check for leaks.

Frequently Asked Questions (FAQs)

1. What are the symptoms of engine bearing failure? - Knocking or rattling sounds, loss of engine power, overheating, and excessive oil consumption.
2. How often should I inspect engine bearings? - At least once a year or after 50,000 miles of driving.
3. Can I replace engine bearings myself? - While possible, replacing engine bearings requires specialized knowledge and tools. It is recommended to seek professional assistance.
4. What is the average cost to replace engine bearings? - Depending on the engine type and complexity of the repair, the cost can range from $500 to $2,000.
5. How long should engine bearings last? - With proper maintenance and lubrication, engine bearings can last for the life of the engine, typically over 100,000 miles.
6. What is the best type of oil for engine bearings? - High-quality engine oil with the appropriate viscosity and additives recommended by the manufacturer.

Conclusion

Engine bearings play a vital role in the smooth and reliable operation of an engine. By understanding their importance, selecting the appropriate materials, diagnosing and preventing failures, and following proper maintenance practices, engine bearings can ensure optimal engine performance and longevity.
