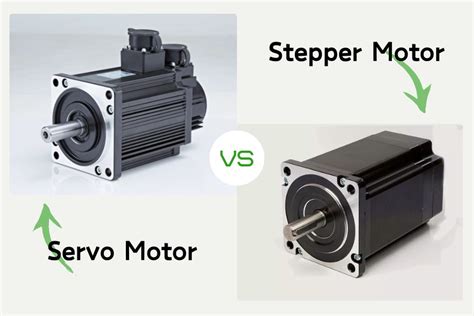

Servo Motor vs. Stepper Motor: A Comprehensive Guide

Introduction

Electric motors are indispensable components in countless industrial and consumer applications, from robotics and automation to medical devices and home appliances. Among the diverse motor types available, servo motors and stepper motors stand out as popular choices for precision motion control. This guide provides a comprehensive comparison of these two motor technologies, exploring their key characteristics, advantages, limitations, and suitable applications.

Servo Motors

What are Servo Motors?

Servo motors are closed-loop control motors that precisely regulate their angular position, velocity, and torque based on feedback from an encoder or other sensing device. They feature a high level of control accuracy, enabling precise and dynamic motion control.

Key Characteristics:

• Closed-loop control: Servo motors continuously monitor their position and feedback to adjust their behavior accordingly.
• High accuracy: They offer high positional accuracy of up to ±0.01 degrees.
• Fast response: Servo motors have quick response times, allowing for rapid acceleration and deceleration.
• Continuous rotation: They can rotate continuously in either direction.
• Compact and lightweight: Servo motors are typically compact and lightweight, making them suitable for space-constrained applications.

Advantages:

• Precise control: Servo motors excel in applications requiring high precision and accurate positioning.
• Dynamic response: They can handle rapid changes in speed and direction, making them ideal for applications involving complex motion profiles.
• Continuous operation: Servo motors can operate continuously without overheating or losing accuracy.
• Long lifespan: With proper maintenance and lubrication, servo motors typically have a long operating lifespan.

Disadvantages:

• Cost: Servo motors are relatively expensive compared to stepper motors.
• Complexity: They require complex control systems, including encoders, controllers, and software.
• Maintenance: Servo motors require regular maintenance, such as encoder and bearing replacement.

Stepper Motors

What are Stepper Motors?

Stepper motors are open-loop control motors that move in discrete steps based on electrical pulses sent to its windings. They offer reliable and cost-effective motion control solutions.

Key Characteristics:

• Open-loop control: Stepper motors rely on the number of electrical pulses applied to determine their angular position.
• Limited accuracy: They have a lower degree of positional accuracy compared to servo motors, typically ranging from ±3 to ±5 degrees.
• Discrete movement: Stepper motors move in discrete steps, which can lead to audible noise and vibrations.
• Holding torque: They provide holding torque even when the motor is not energized, preventing the shaft from moving.

Advantages:

• Cost-effectiveness: Stepper motors are significantly cheaper than servo motors.
• Simplicity: They are easy to control and operate, requiring only a simple pulse generator.
• Reliability: Stepper motors are robust and reliable, requiring minimal maintenance.
• Low inertia: Stepper motors have low inertia, enabling rapid acceleration and deceleration.

Disadvantages:

• Accuracy: Stepper motors have lower positional accuracy than servo motors.
• Limited speed: They cannot achieve the same high speeds as servo motors.
• Noise and vibrations: Stepper motors can produce audible noise and vibrations due to their discrete movement.

Comparison Table

Suitable Applications

Servo Motors:

• Robotics and automation
• CNC machines
• Medical devices
• High-performance motion control systems

Stepper Motors:

• Positioning systems
• Printers and scanners
• Textile and packaging machinery
• Cost-sensitive applications

Effective Strategies for Selecting between Servo and Stepper Motors

To effectively select between servo and stepper motors, consider the following factors:

• Required accuracy: For applications demanding high precision, servo motors are the better choice.
• Speed and dynamics: Servo motors excel in applications requiring high speeds and dynamic motion control.
• Torque requirements: Stepper motors provide higher holding torque than servo motors.
• Budget constraints: Stepper motors are more cost-effective than servo motors.
• Maintenance requirements: Servo motors typically require more maintenance than stepper motors.

Common Mistakes to Avoid

Common Mistakes:

• Overestimating accuracy requirements: Avoid selecting a servo motor for applications where high precision is not critical.
• Underrating speed and dynamics: Ensure that the selected motor can meet the required speed and dynamic requirements of the application.
• Ignoring holding torque requirements: Consider the holding torque requirements of the application, especially in applications where the motor may remain stationary for extended periods.
• Neglecting maintenance considerations: Factor in the ongoing maintenance costs and requirements of the selected motor type.

Conclusion

The choice between servo and stepper motors depends on the specific application requirements. For applications demanding high precision, accuracy, dynamic response, and continuous operation, servo motors are the ideal choice. In applications where cost-effectiveness, simplicity, and reliability are paramount, stepper motors are a suitable option. By understanding the key differences between these two motor technologies and considering the factors discussed in this guide, engineers can make informed decisions that optimize performance and cost-effectiveness.
